Precision Vertical Drill Guide for Handheld Drills | Aluminum Profile & Woodworking Drill Press Stand
Optimized for 20/30 Series Aluminum Profile Drilling
Custom-Made High-Rigidity, High-Precision Stand
plus 40-slot & 2040 adapter plates optional
Key Features
✅
Profile-Specific Optimization: Tailored for 20/30/40 series aluminum profile drilling. Precisely fits 2020/3030 profiles for quick centering and mounting. Long shaft version (see Fig.8), 40-slot base, and 2040 adapter plates are available to meet diverse processing needs.
✅
CNC Precision Machining: Base plate and drill clamp are fully CNC milled (not drilled), delivering far higher concentricity and perpendicular accuracy than generic "bearing seat + hand-drilled aluminum plate" alternatives. Drilling deviation ≤0.1mm, eliminating drift and hole breakage.
✅
Full-Metal High Rigidity: Crafted from 6061 aerospace aluminum, with three core plates thickened to 10mm. Paired with 12mm hardened 45# steel shafts, it resists corrosion and rust, maintaining a smooth finish while staying durable and deformation-free for long-term use.
✅

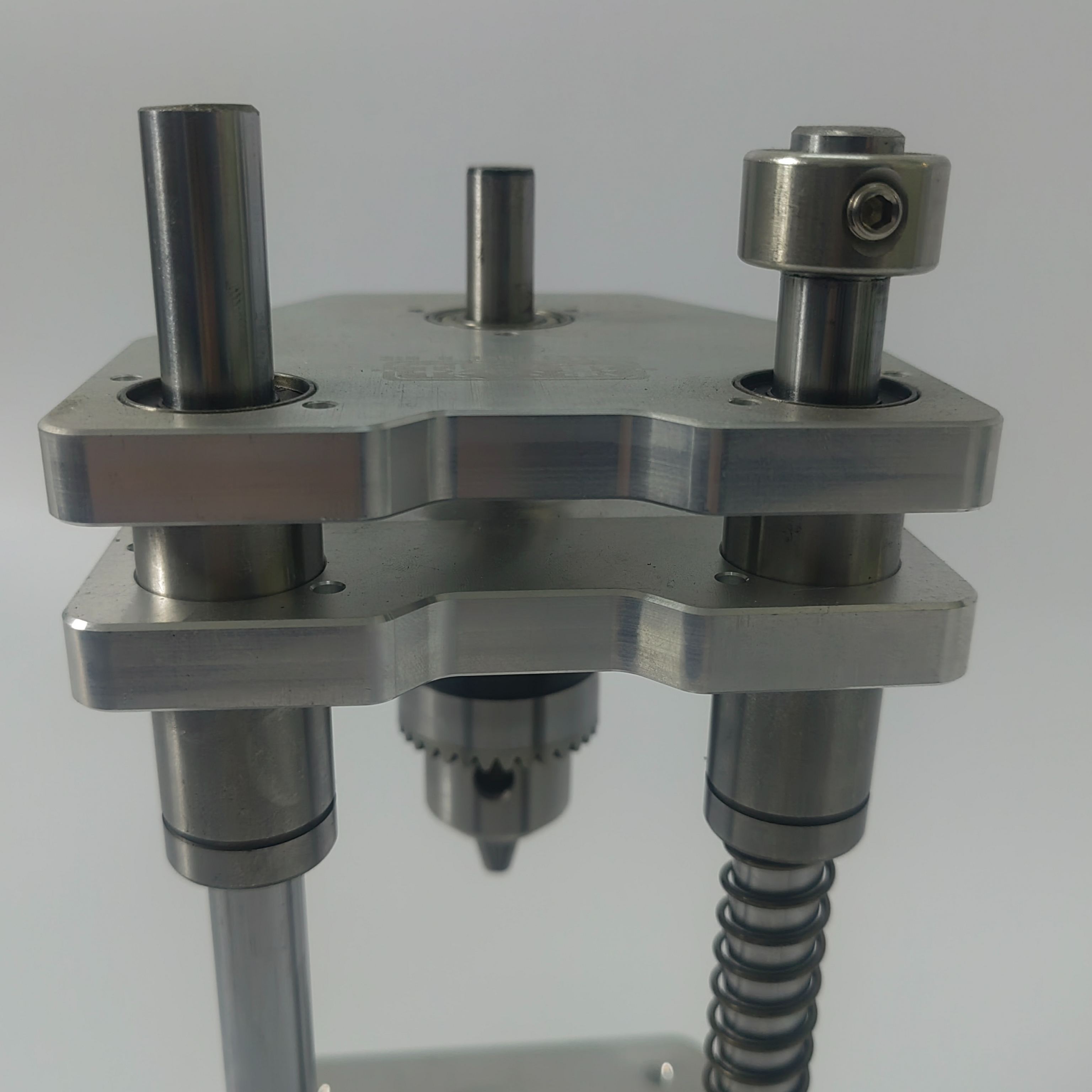

Dual-Bearing Stable Structure: Equipped with a high-concentricity hardened taper chuck (clamping range 1.5–10mm). Dual-bearing double-seat design minimizes runout and vibration, ensuring stable vertical drilling even for beginners.
✅

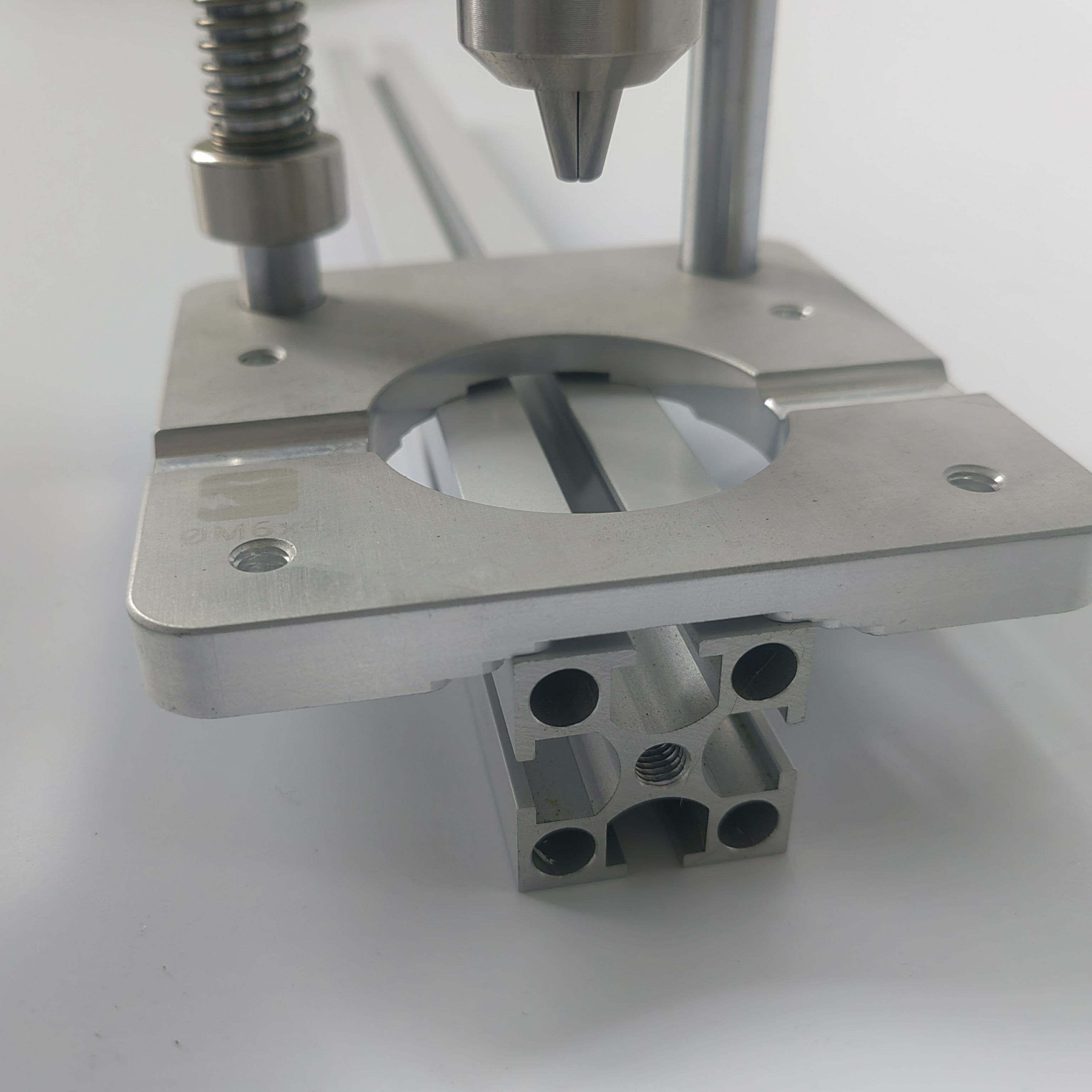

Universal & Expandable: Compatible with 99% of common handheld drills (cordless/corded). The specialized base features a front groove for cylindrical workpiece drilling and a back groove for direct mounting on 20/30 profiles. Default base excludes 40-slot; please note if required.
Product Specifications
| Component |
Specifications |
Key Advantage |
| Main Material |
6061 Aluminum (10mm thick plates) |
Corrosion-resistant, high strength, rust-free |
| Shaft |
12mm Hardened 45# Steel |
Wear-resistant, impact-proof, no bending |
| Clamping Range |
1.5–10mm (taper chuck) |
Fits most standard drill bits |
| Profile Fit |
20/30/40 Series Aluminum Profiles |
Built-in centering groove for fast alignment |
| Machining |
CNC Milled Base & Clamp |
Superior precision vs. drilled alternatives |
| Structure |
Dual-Bearing Double-Seat |
Minimal runout, maximum concentricity |
Applications
🔨
Aluminum Profile Assembly: Precision drilling for DIY cases, workbenches, and shelves without damaging profiles.
🔨
Woodworking & DIY: Stable vertical drilling on wood/acrylic, eliminating handheld drill wobble.
🔨
Small Metal Fabrication: Accurate hole making for metal parts and cylindrical workpieces.
🔨
Home Repair: Fast positioning for shelf/bracket installation, boosting efficiency.
Notes
- Default base does not include 40-slot; please note when ordering if 40-slot or 2040 adapter plate is needed.

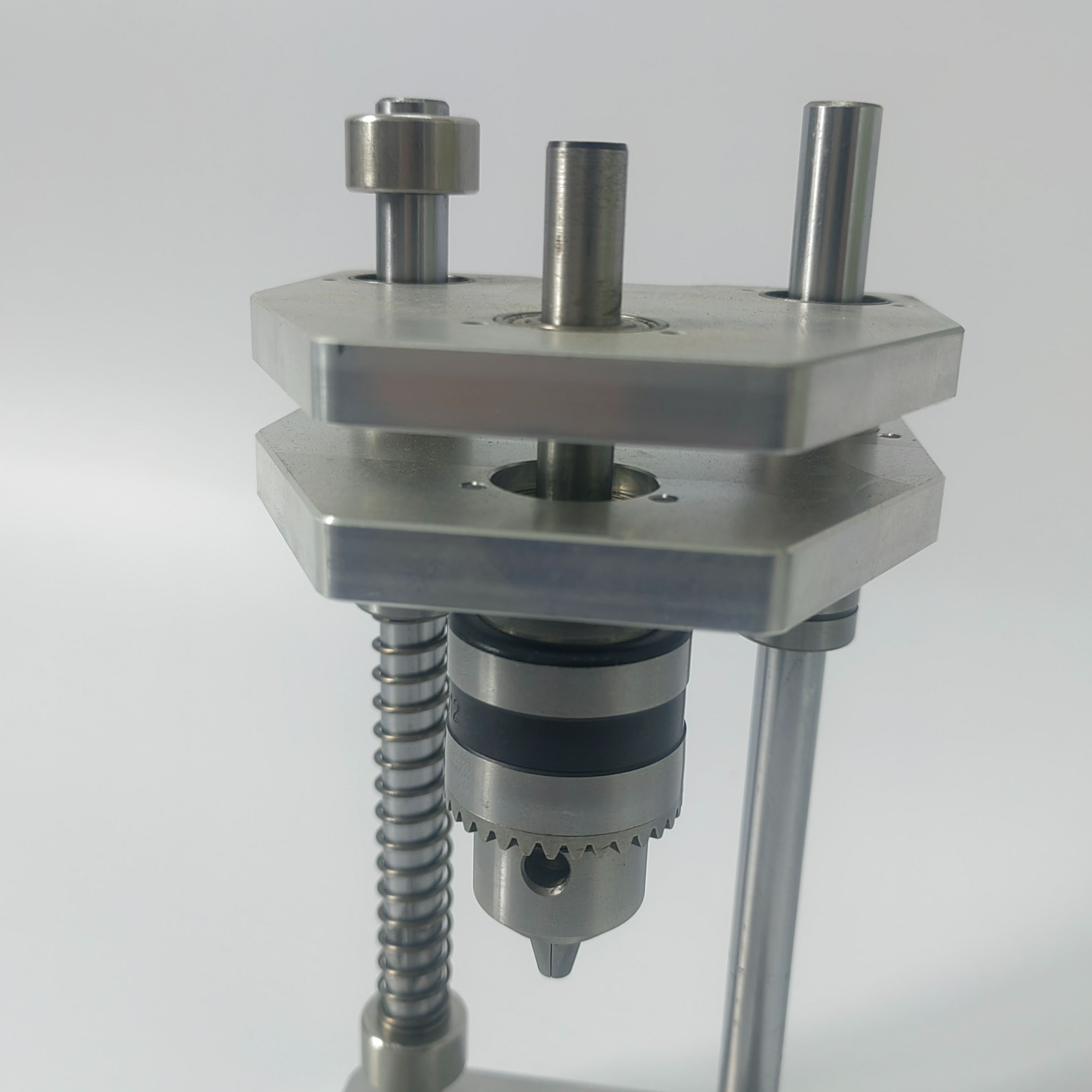

- Long shaft version (see Fig.8) is designed for deep-hole or extended workpiece processing.

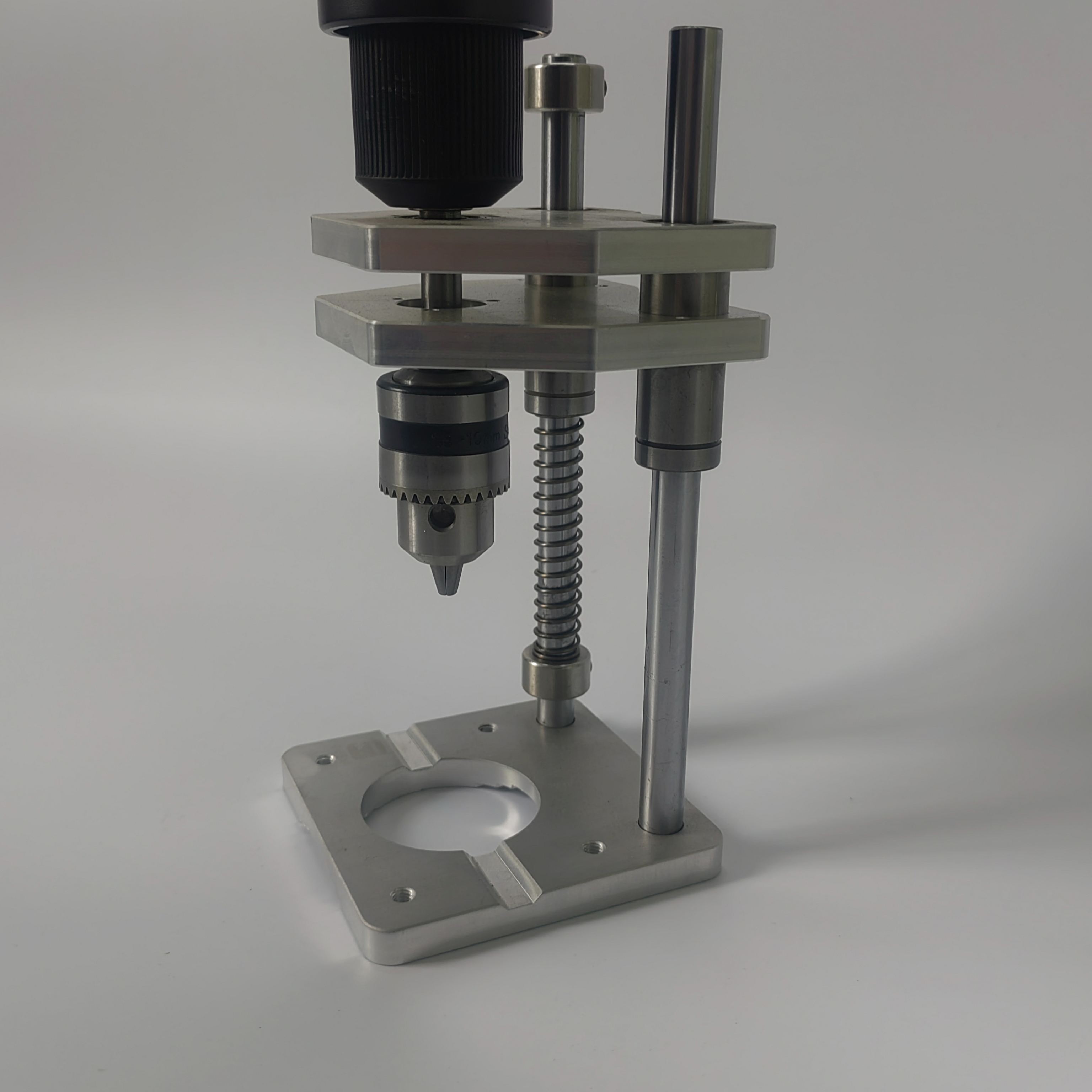

- Easy installation: Secure your handheld drill in the clamp and mount the stand—setup in 3 minutes for beginners.
Why Choose Us?
Unlike cheap "assembled aluminum plate" alternatives, our stand uses CNC precision milling for every hole and plate. The full-metal structure balances lightweight portability and industrial-grade strength, making it the cost-effective choice to upgrade your handheld drill to a mini press—ideal for DIYers and small workshops alike.
