Tianli trademark holder，Tianli handheld mortisers official sales channel

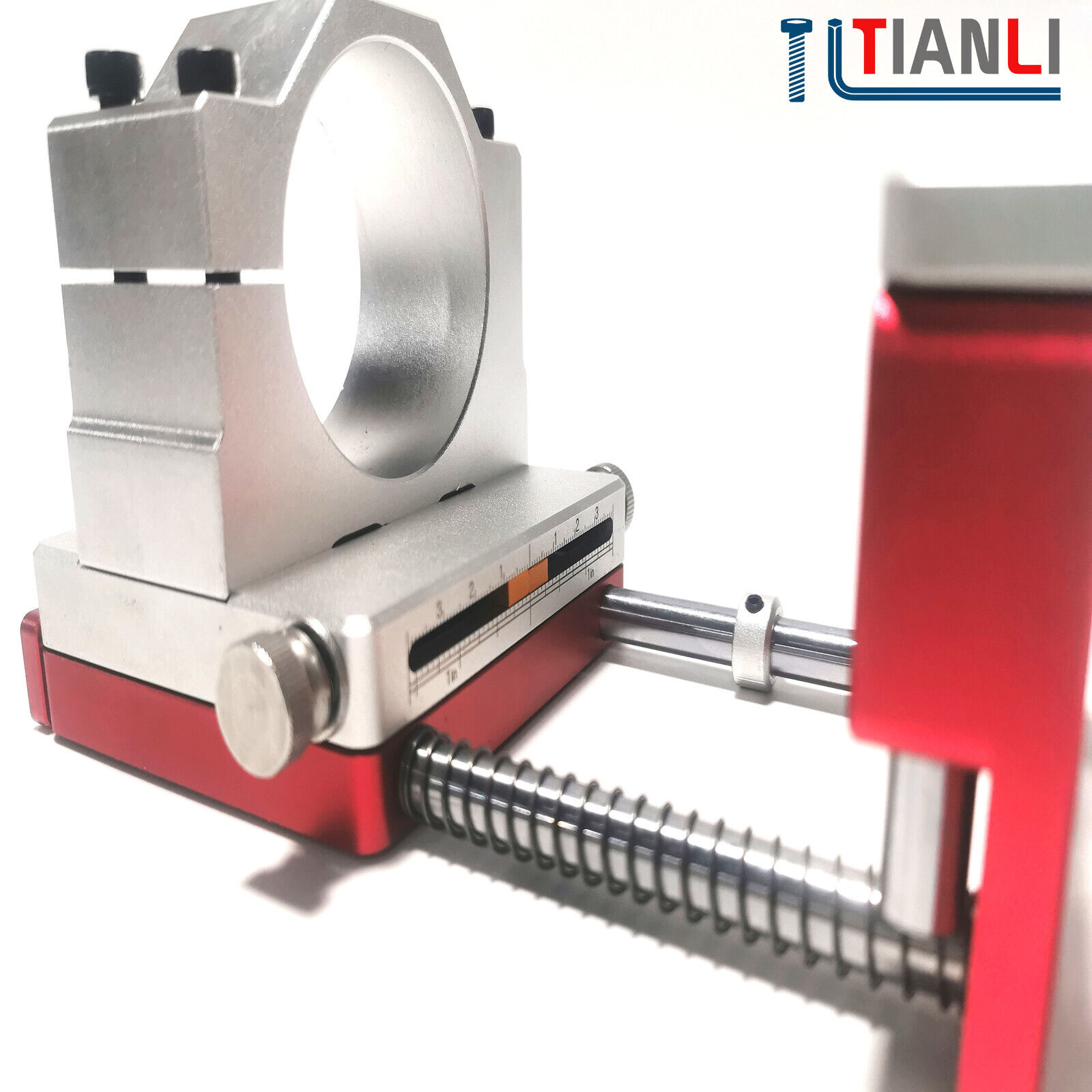

Turn your trim router(65mm or 69mm shank) into a mortising machine with the Tianli Handheld Mortiser. This jig makes floating tenon joints much easier than a plunge router approach. The easy to use fence system and mortise width adjusters allow you to make any size mortise that you need.
l Precision CNC anodized aluminum body
l Lightweight design, weighs under 3.5Kg when mounts Makita trim router
l Self-centering mortising, width controlled by either stainless steel knurled knobs
l Imperial and metric gauges for mortise width and fence edge to bit center distance
l Easy to use mortise depth adjustment

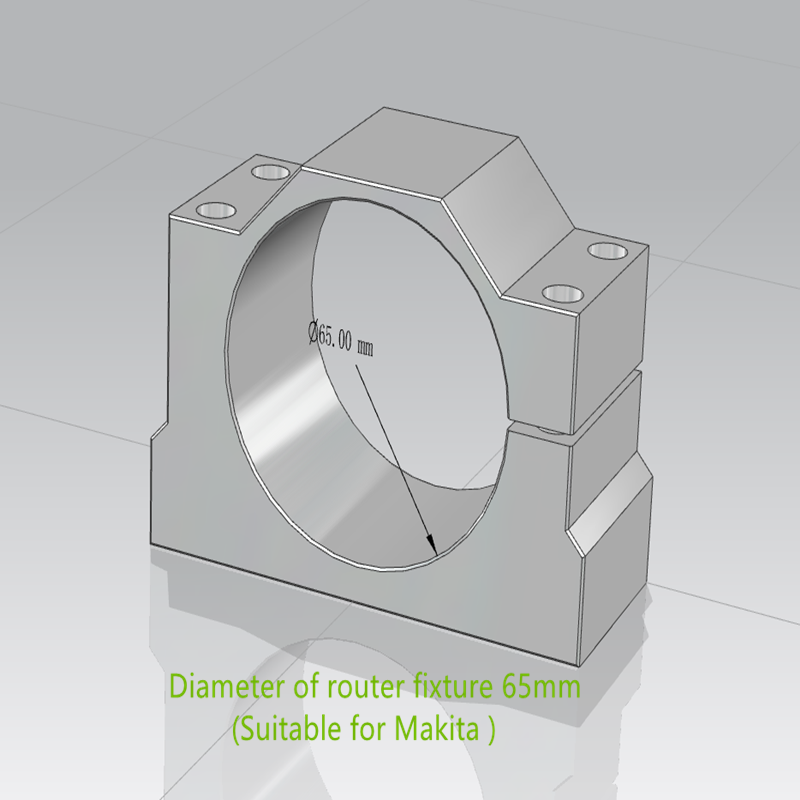

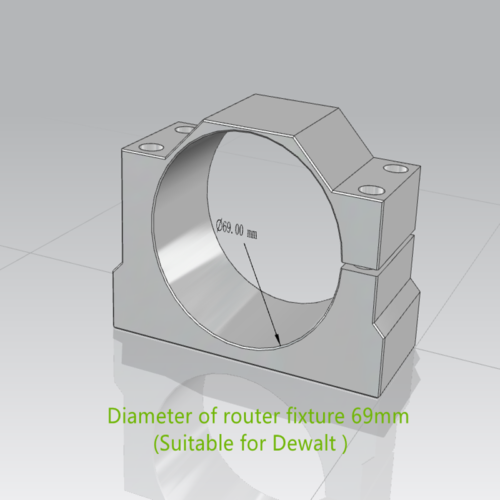

l Univeral 65mm/69mm router mount
l Easy to align mortise center gauge
l Straight bits OK for mortising and spiral bits allow for dowelling
l Spring loaded router carriage for safe operation
Fits: Makita 0700/0701 and its cordless version and various China made models, such as Katsu, that look alike. DeWalt 611 and its cordless version.Does not come with router shown in photo.
FAQ:1) Where do I get the tenon stocks? Tenons can be made on a router table with a roundover bit. If you don't have metric bits, a chamfer works just fine. 2) How can I use a straight bit with this jig? A regular straight bit works when you feed the bit into your work piece little by little while moving side to side. Only the tip of your straight bit works in operation as it is not feasible to plunge the bit into the work piece.3) Do you ship to XXX country? If postal services don't suit you,contact me for commercial courier quotes.4) What bit do you recommend? Spiral bits are always preferred but finding larger than 1/4’’ can be difficult. Good quality straight bits also work.
